Reimagining a Participatory Design Process for Aging in West Oakland

Partner: Jiwon Kim
Fall 2021
Course: Architectural Design III, Barnard College
Instructor: Professor Ignacio G. Gálan and TA Rubén Gomez Gañán

What’s My West Oakland?

Applications
Adobe Illustrator, Adobe Photoshop, Adobe Indesign, Rhino

Methods
Community Engagement, Branding, UI/UX, 3D Modelling, 3D Printing, Publication Design, Diagram Design, Stakeholder Research, Collage, Rendering, Lighting Design, Site Planning, Transportation Planning

Through our analysis of existing stakeholders, organizations, and networks of care, we saw gentrification as a central source to many of the burdens experienced by seniors living in West Oakland From the displacement and erasure of key local businesses and organisations, to disruptions to vital family networks and interpersonal relationships. However, we also saw this aging community not as victims of this ongoing development, but agents that have and will continue to actively respond to these external pressures through adaptation, participation, and resistance. As such, we developed a multi-scalar and multi-disciplinary approach to reimagining the participatory design process and practice as a mobilizer of meaningful engagement across four key domains of urban publicness- streets, furniture, lighting, and transportation.

A Venn diagram illustrating the core values of a community-oriented urban design philosophy in orange circles. The central section emphasizes an 'Abundant Participatory Urban Design Process.' Surrounding this are statements about democratizing design, mobilizing accessibility through technology, and shifting from technocratic logics.
Diagram showing various community locations such as schools, community kitchen, bus stop, public library, bike stations, public park, homeless shelter, grocery store, elderly home, and affordable housing arranged in a circle around a central workshop.
A diagram titled 'Who Was the Participatory Process?' showing different roles in a participatory process with illustrations and labels for various participants such as commissioner, designer, workshop attendee, observers, facilitators, problem solvers, voters, devil's advocates, imagnation triggerers, knowledge providers, conflict resolvers, and consolidators, connected by dashed lines.

Concept Diagrams of Proposed Participatory Process Re-Design

A collage of informational posters and infographics titled "What's My West Oakland?" featuring topics like transportation, furniture, streets, public spaces, and lighting, with illustrations, diagrams, and text.
Graphic with four round stickers and a large orange oak leaf symbol. The stickers say 'We Are West Oakland,' 'I Am West Oakland,' 'I Love West Oakland,' and 'West Oakland Loves Us,' each featuring a smiling anthropomorphic oak leaf. The background is light blue, with a paragraph describing Oakland and its community symbols.
Screenshots of a participatory urban design tool called 'What's My West Oakland?' showing the process of customizing a golf cart with options to select transport modes, add enhancements, and finalize the design.

Toolkit Sheets, Branding, and Website Design

Educational board game with colorful blocks labeled 'Plantar', 'Bus', 'Bike', and 'Pedestrian', on a wooden board with sticky notes and game pieces.

Board Game to Facilitate Participatory Design of Road Lane Re-allocation and Re-distribution

A detailed architectural scale model of a modern urban development, including buildings, roads, and green spaces, set on a gray surface.

Model of San Pablo Avenue Corridor Segment

Diagram of enhanced city street lamp for online and offline aging experiences, featuring adjustable arm, solar panels, environmental sensors, public Wi-Fi, Bluetooth, and safety features, with smartphones showing lamp controls, a community event sign, and people engaging with the technology.

Illustrated Diagram of City Street Lamp Design Enhanced for Online and Offline Aging Experiences

A detailed infographic map highlighting various community projects, locations, and initiatives in West Oakland, California, including parks, social programs, community centers, and local events, with overlayed descriptions and images.

Scenes and Organizations of Care, Lived; Living; and Lost, By and For the Aging in West Oakland

A street scene with hand-drawn illustrations of a mobile community service offering free haircuts and dyeing, including a grooming cart, a grooming van, a person getting a haircut on a mobility scooter, and a sign reading 'Free Haircut! Free Dye!', with a large tree and building in the background.
Illustration of people shopping at a flea market or yard sale with clothing racks, boxes, and shoes, set against a real urban background with graffiti-covered walls and buildings under a partly cloudy sky.
Illustration of the interior of a tiny house with four people and a wheelchair inside, overlaid on a background of an outdoor garden scene.

Collages of Mobile Street Activations: Free Haircut Services, Community Closet, and Group Therapy

A lively urban park scene with children playing, adults walking and riding bikes, and a variety of community activities. There are trees, apartment buildings, a colorful bicycle, a small vehicle decorated with patterns, and a kite flying in the sky.
Night aerial view of an urban street illuminated by various streetlights, trees, and lighting features, with parking and buildings surrounding the street, along with labels describing lighting types and color temperatures.

Urban Lighting Master Plan of San Pablo Avenue Corridor

Diagram of a hybridized mobility scooter with a person seated, showing features like LED moped lights, a handlebar for stabilization, a front basket for storage, a shopping cart container attached to the back, and sufficient leg room. Specifications on the side indicate it is approximately 3.25 by 3.67 feet, costs around $1,000, and has a speed of 4.5 to 8 mph.
An infographic of an electric wheelchair-accessible golf cart with labeled features such as a canopy for protection, rear seating/storage area, headlights for night vision, and wheelchair ramp access. The image includes front and side elevation views, with specifications like price, size, energy source, and speed.
Poster on a closed storefront displaying a diagram of a hybrid mobility scooter shopping cart, showing features and specifications, with a pedestrian walking by.
Person holding a white smartphone displaying an infographic about hybrid mobility scooter shopping, with a blurred background of people in an indoor setting.

Mobile Augmented Reality Representation of Mobility Device Hybridizations for Enhanced Public Engagement

Interior of a modern architectural firm or planning studio with large window panels, white walls covered with various design plans and posters, and miniature models of urban scenes and buildings on the floor.
Miniature model scene of an outdoor area with a yellow umbrella, a small wooden structure, a white streetlamp, a bicycle, and paper cutouts of two people walking, set on a surface with artificial grass and a printed mat.

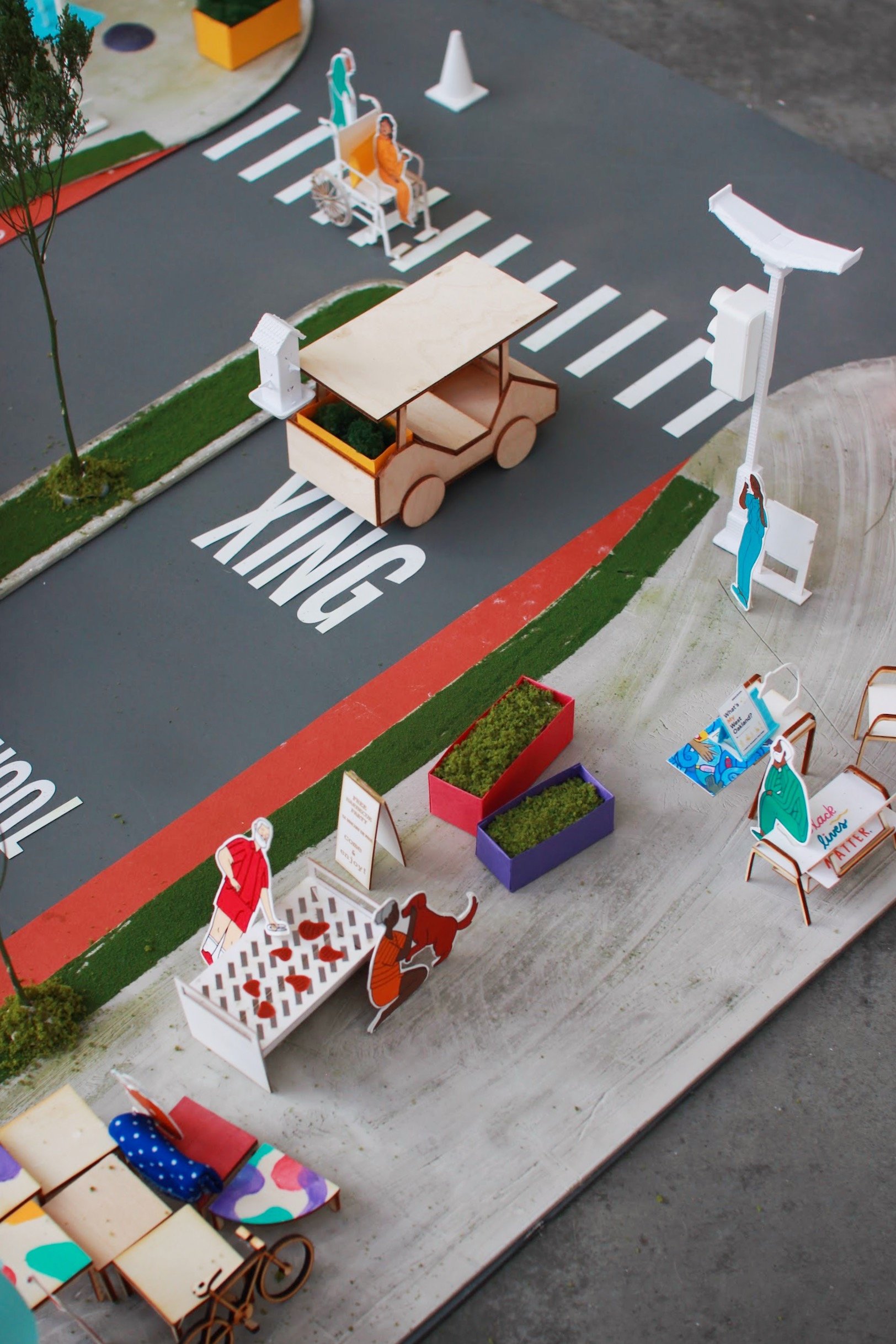

Miniature model of a city street scene with a wooden golf cart, a pedestrian and a cyclist crossing a crosswalk, and a traffic cone on a gray road with painted white lines and a small grassy island with a tree.
Miniature scene with paper cutout figures engaging in activities like dancing and walking, set on a model outdoor space with trees, benches, umbrellas, and a street with a bike lane.
A miniature outdoor scene with a small wooden golf cart, paper cutout people, a bike, and planters. The scene is set on a model street with pedestrian crosswalks and signs, including a street marking that says 'PARKING' and 'SCHOOL'.

Aging in West Oakland Exhibition in Barnard College, Diana Center
